ItemWaterproof LED Screen Outdoor P6 SMD LED Video WallPixel Configuration1R1G1BPhysics Distance Between Pixels6mmPhysics Pixel Density27,777 Pixel/m2Module Size (W x H)192mmx192mmPhysics Pixel / Module32x32=1024Cabinet Size (W x H)576mmx576mmPhysics Pixel / Cabinet96x96=9216Cabinet Weight12kgBrightness>6000cd/m2Viewing Distance>6mPower Consumption (W/m2)MAX 1300; Average 260Driver Mode1/4 scanLed Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC~+50ºCOperating Humidity10%-90%Storage Temperature-40ºC~+60ºCViewing AngleHorizontal:120°; Vertical: 120°Grey ScaleRed, green, blue each 16kDisplay Colors4096 BillionRefresh Rate300HZ-3000HZ adjustableIP RatingFront IP65 waterproof dust-proofDisplay CapabilityVideo, Graphic, Text, flash

After sales maintenance
 1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC  and 60ºC when you receive the goods from the customs

2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.


3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

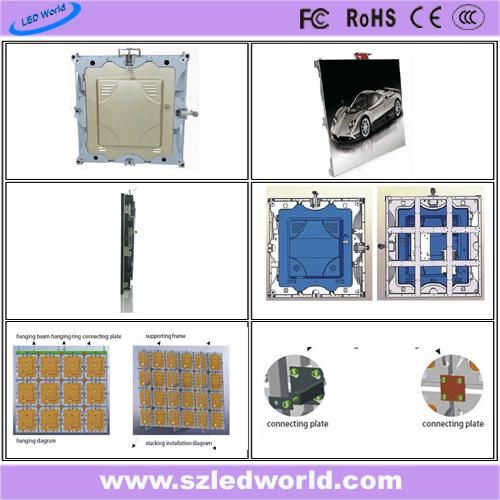

product detail:

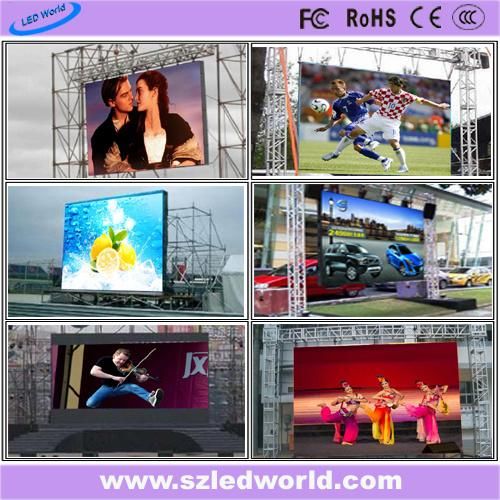

Project case:

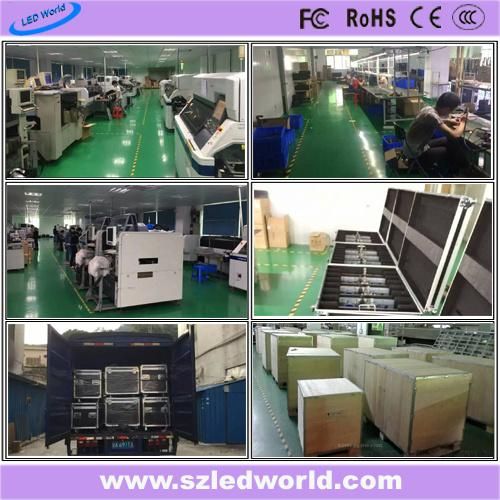

Workshop and Packing::
