No.ParameterSpecification1Pixel Pitch10mm2Module size160mm*160mm3Module pixel16dots*16dots4Cabinet size960mm*960mm*150mm5Cabinet resolution96dots*96dots6Pixel Density10000pix/sqm7LED TypeDIP3468Viewing Angle(H)120°,(V)60°9Brightness≥7500cd/sqm10Drive Method1/4 scanning11Driving ICMBI512412Color Depth409613Refresh Rate≥1920 Hz14Frame Rate≥60Hz15Brightness AdjustmentManual control by software/Auto control16Cabinet Type and MaterialSteel Iron17Cabinet Weight≤60kg/sqm18VoltageAC 220/110V±10%,50Hz19Avg. Power Consumption220W/sqm20Max. Power Consumption650W/sqm21Service AccessRear maintenance22Protection GradeFront IP65,Rear IP5423Operating Temp/Humidity-30ºC~60ºC, 10~95%RH24Control modesynchronization with PC25Operating SystemWINDOWS(98/2000/XP/Vista)26Storage Temp/Humidity-40ºC~60ºC, 10~95%RH27Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV28MTBF≥10000hours29Lifetime(Normal Temp)≥100,000Hours

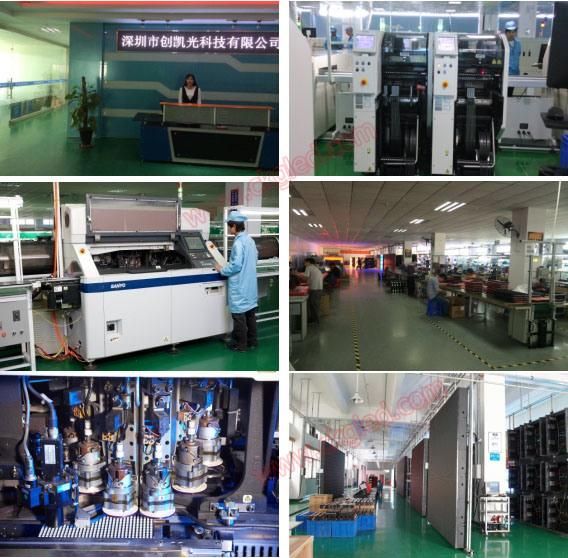

WORKSHOP:

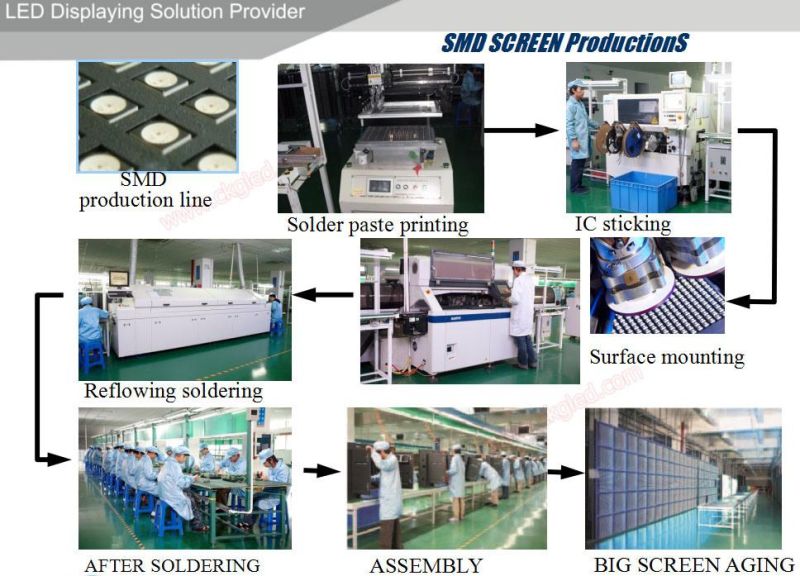

PROCESS:

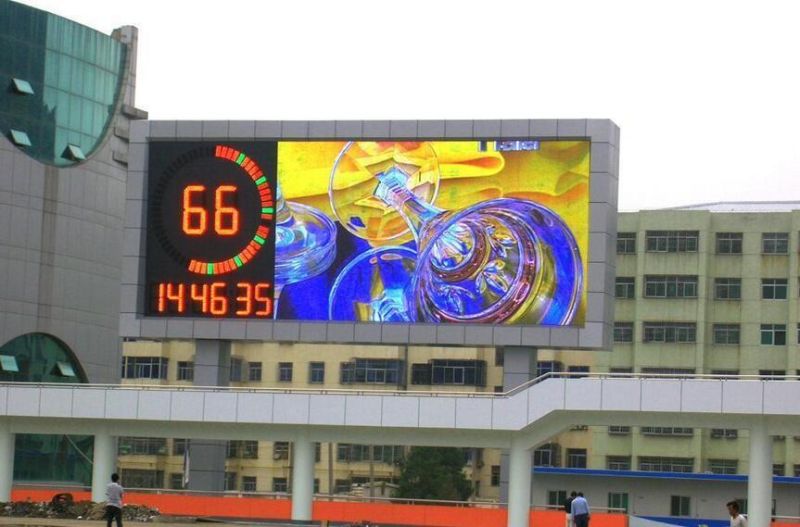

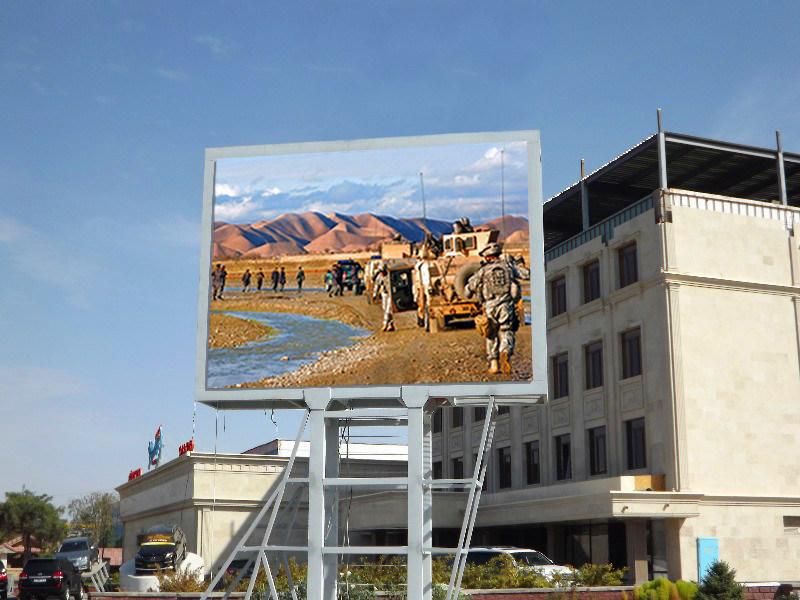

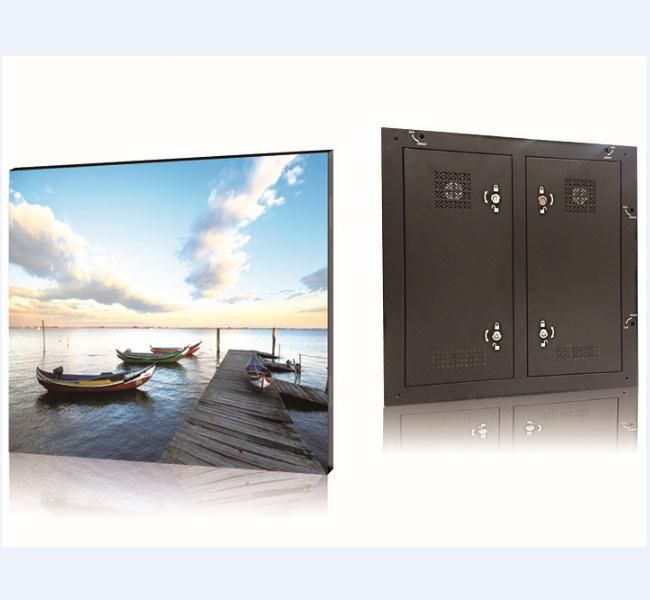

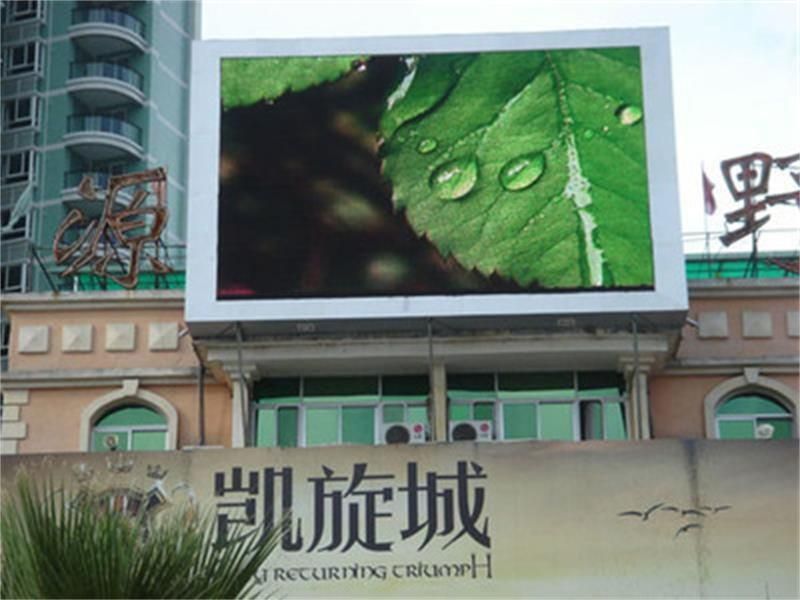

Product photos:

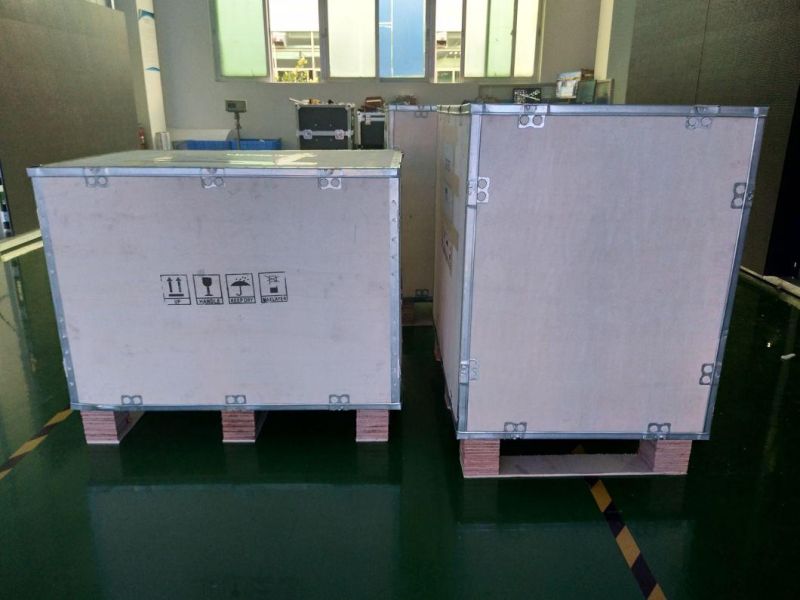

Package:



Certificates:





Other products:

Indoor fixed LED display:  P2.5,  P3,  P4,  P5,  P6,  P7.62,  P10

Indoor rental LED display: P3,  P4,  P5,  P6,  P10,  P3.91,  P4.81,  P6.25 ,

Outdoor fixed LED display:  P4,  P5,  P6,  P7.62,  P8,  P10

Outdoor rental LED display:  P4,  P5,  P6,  P8,  P10,  P6.667,  P3.91,  P4.81,  P5.95,  P6.25

Small pitch LED display:  P1.667,  P1.875,  P1.904,  P1.923,  P2.0, P2.5

Front service maintenance LED screen:  P10,   P16,  P20

Stadium perimeter LED screen:  P8,  P10,  P16
