NO.ItemParameters2Pixel Pitch(mm)63LED Configuration1R1G1B4LED TypeSMD35355Screen Resolution27777dots/sqm6Module size(mm)192x1927Module resolution(dots)64x328Scan method1/8 constant current drive9Cabinet size(mm)768x76810Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥600013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)30017Max. power consumption(W/sqm)90018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T)>28122Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~95%RH25Working temperature-30ºC~60ºC26CertificatesRoHS / CE / CCC

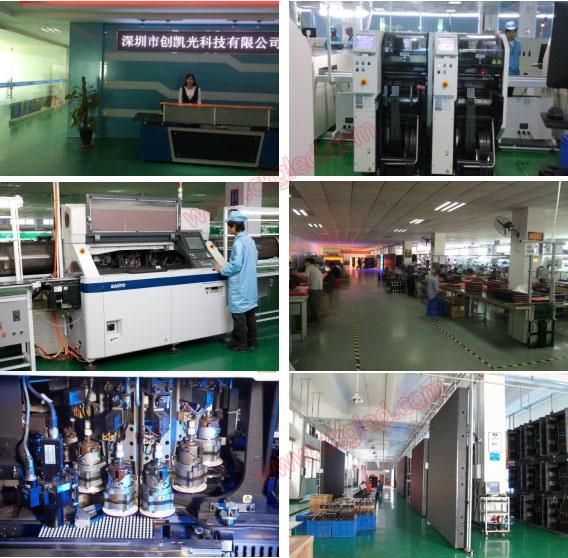

WORKSHOP:

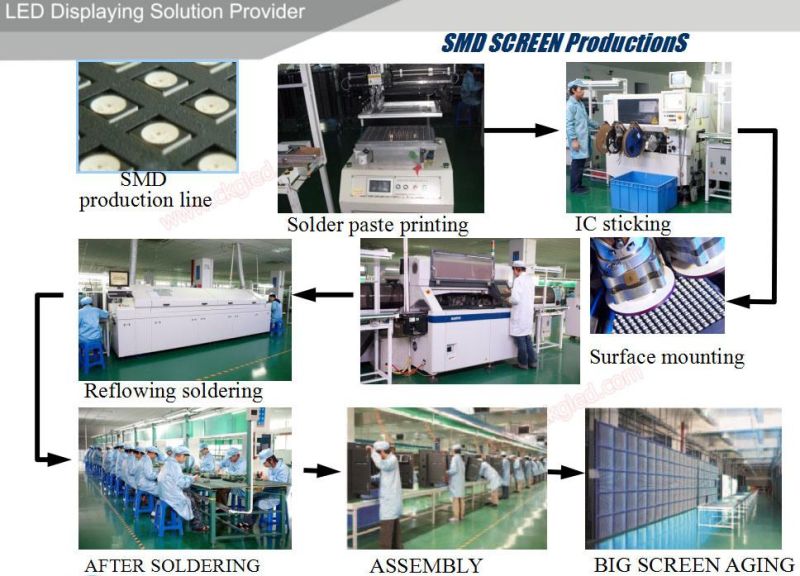

PROCESS:

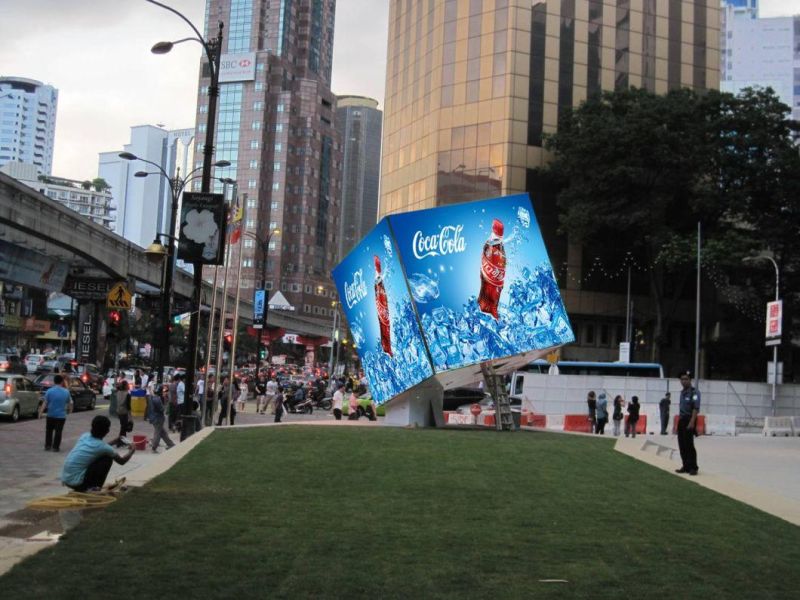

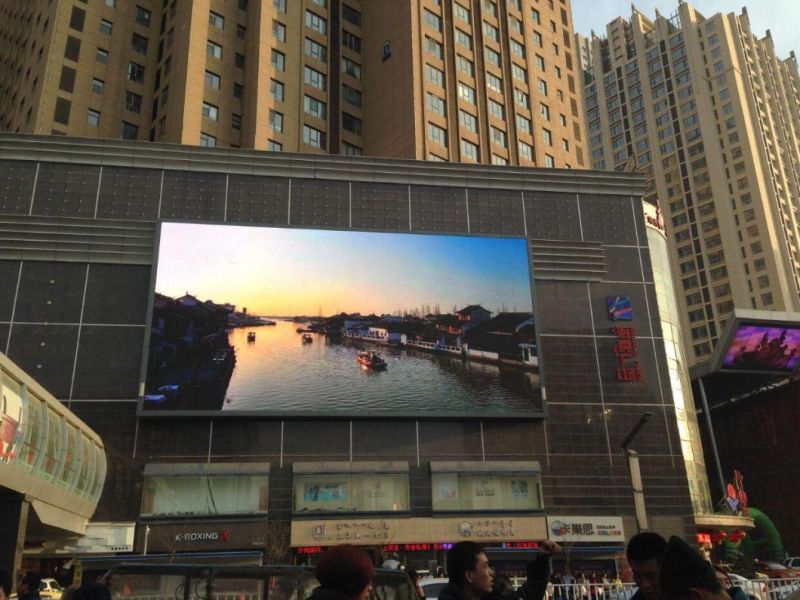

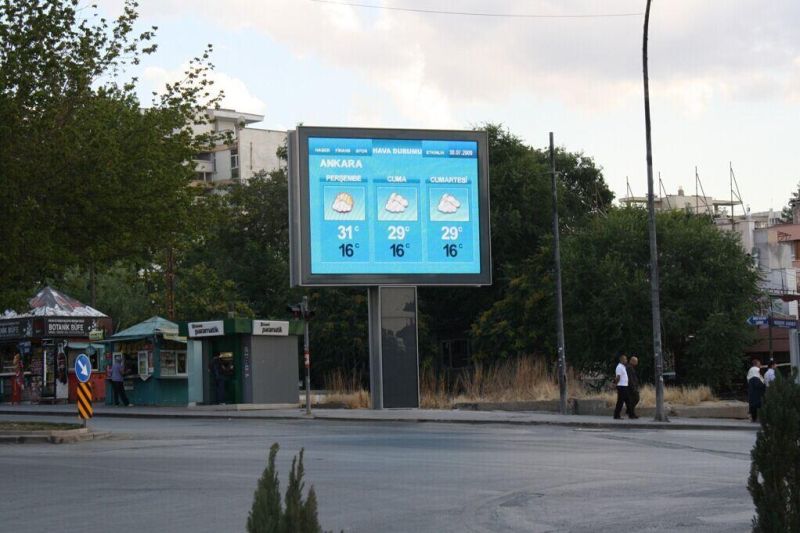

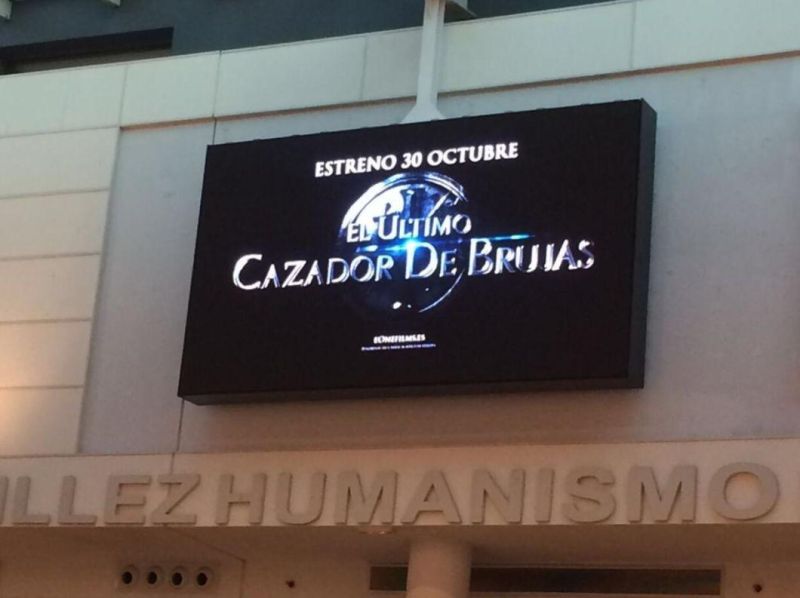

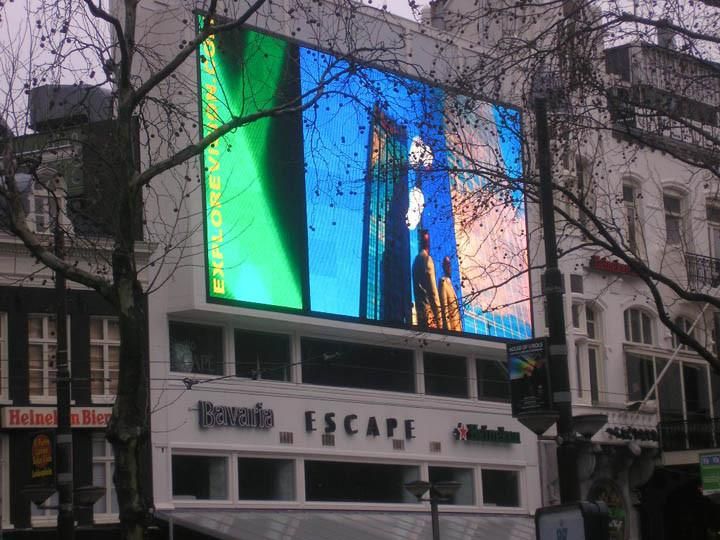

Product Pictures:








Package:



Certificates:




Other products:

Indoor fixed LED display:  P2.5,  P3,  P4,  P5,  P6,  P7.62,  P10

Indoor rental LED display: P3,  P4,  P5,  P6,  P10,  P3.91,  P4.81,  P6.25 ,

Outdoor fixed LED display:  P4,  P5,  P6,  P7.62,  P8,  P10

Outdoor rental LED display:  P4,  P5,  P6,  P8,  P10,  P6.667,  P3.91,  P4.81,  P5.95,  P6.25

Small pitch LED display:  P1.667,  P1.875,  P1.904,  P1.923,  P2.0, P2.5

Front service maintenance LED screen:  P10,   P16,  P20

Stadium perimeter LED screen:  P8,  P10,  P16
