Basic Info.

Model NO. P16 Pixel Density 3906dots/Sqm Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Module Size 256X128mm Module Resolution 16X8dots Cabinet Size 1024X896mm Cabinet Resolution 64X56dots Screen Brightness 7500nits Protection Grade IP65 Viewing Angle V:140° / H:140° Controller Nova Maintenance Rear Service Compliance Ce Transport Package Flight Case Specification 1024x768mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description


S SERIES PRODUCE FEATURES:

  . High brightness which is adjustable to meet the needs of various working      environment sufficiently.,

   ·  Soft mask and protection pillow to protect both players and the led screen itself.

   ·  Angle adjustable: Large viewing angle covers the majority of audience and    cameras: Getting noticed, endless commercial value.

   ·  All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

   · IP65 protection grade, durable nature enables the screen to work in all outdoor  weather conditions.

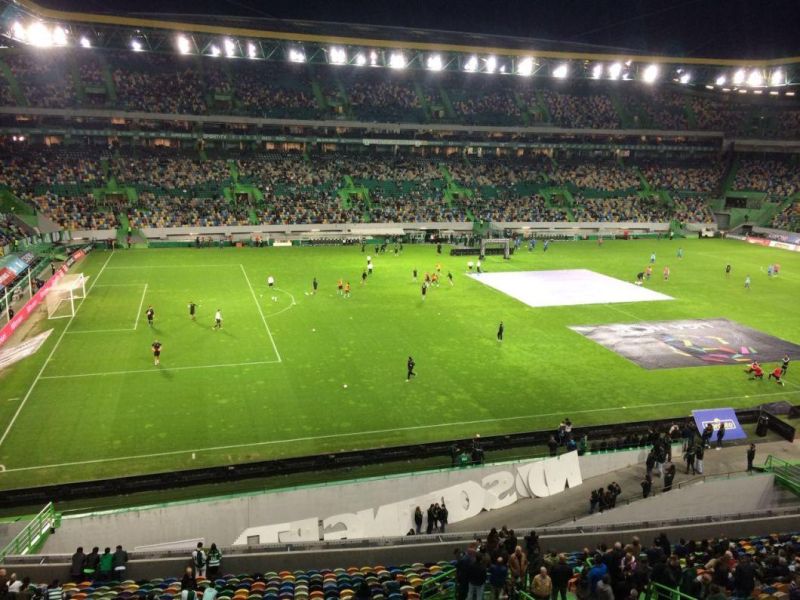

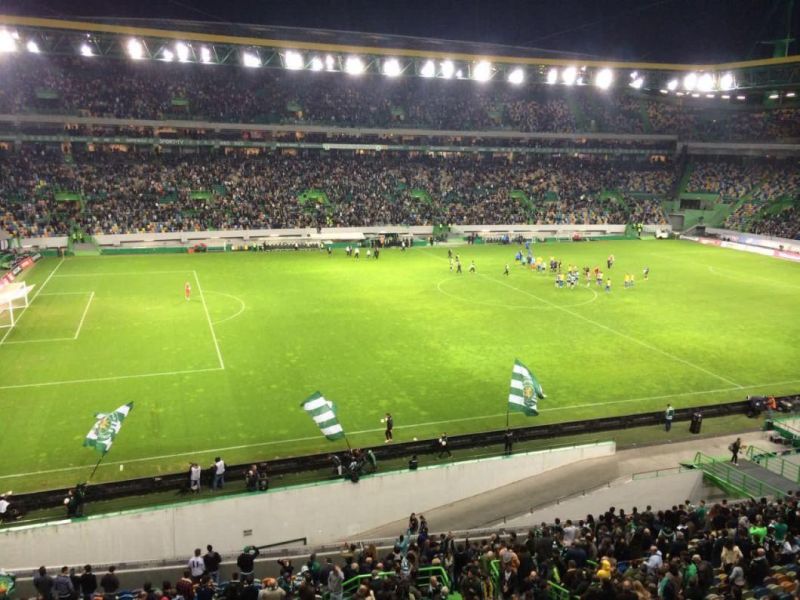

   · Applications: Especially applicable for football stadium / cricket stadium and other  sports fields.




PRODUCT SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model	S16
2	Pixel Pitch (mm)	16
3	Physical Density (dot/sqm)	3906
4	LED Configuration	1R1G1B
5	LED Type	DIP346
6	Module Size (mm x mm)	256x128
7	Module Resolution (PX x PX)	16x8
8	Module Power Consumption (W)	21
9	Drive Mode	Static Constant Current Drive
10	Horizontal Viewing Angle (Deg)	120
11	Vertical Viewing Angle (Deg)	50
12	Brightness (cd/m2)	7,500
13	Grey Scale	16 bit
14	Refresh Rate (Hz)	3500
15	Cabinet Resolution (PX x PX)	64x56
16	Cabinet Max Power Consumption (W)	580
17	Cabinet Average Power Consumption (W)	200
18	Cabinet Size (mm x mm)	1024x896
19	Cabinet Weight (Kg)	55
20	Cabinet Thickness (mm)	150
21	Cabinet Material	Steel/Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP65
26	Working Environment	Outdoor
27	Working Temperature (ºC)	"-30°- +60°
28	Operation humidity (RH)	10%-95%
29	Certificates	CCC ,CE,RoHS

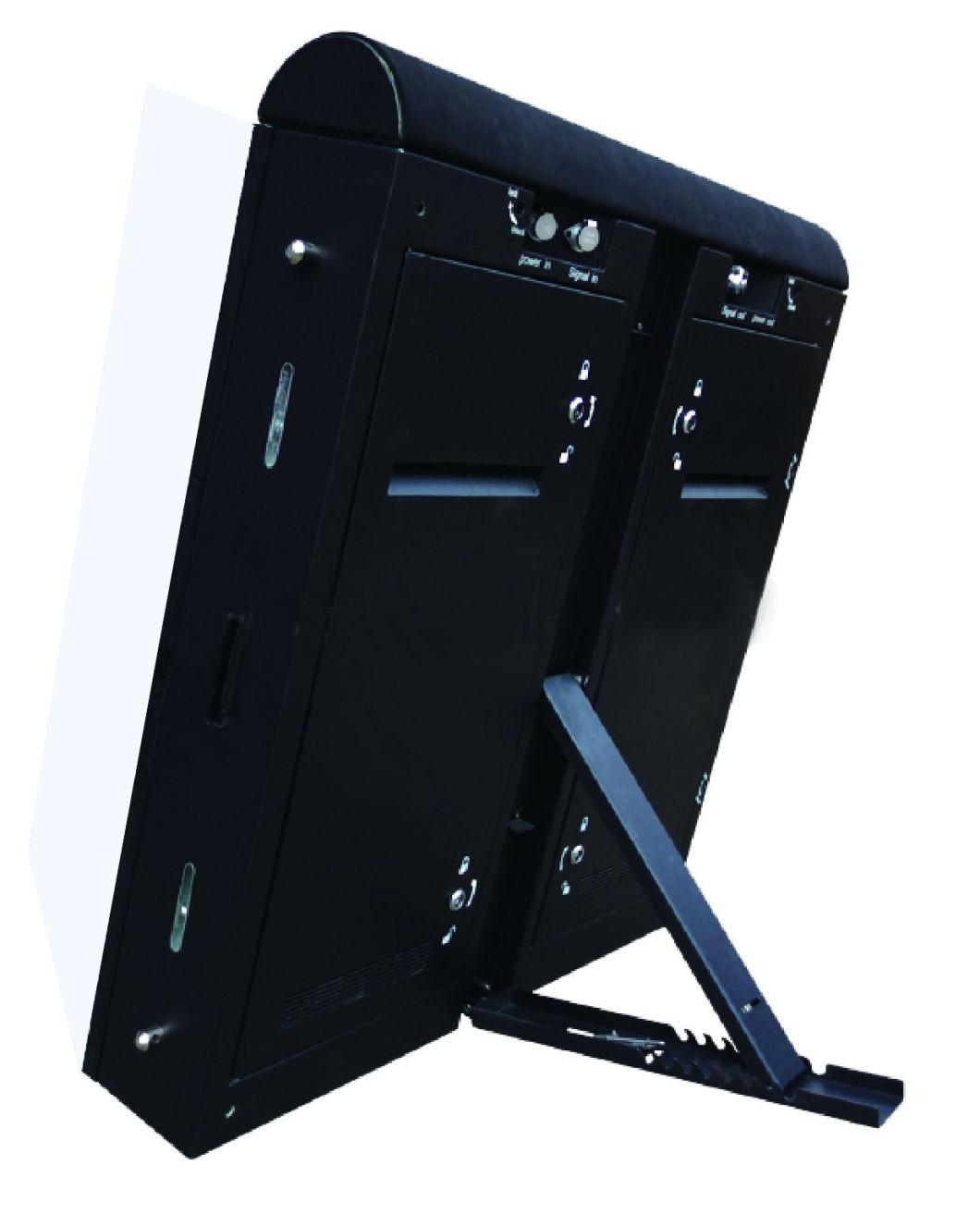

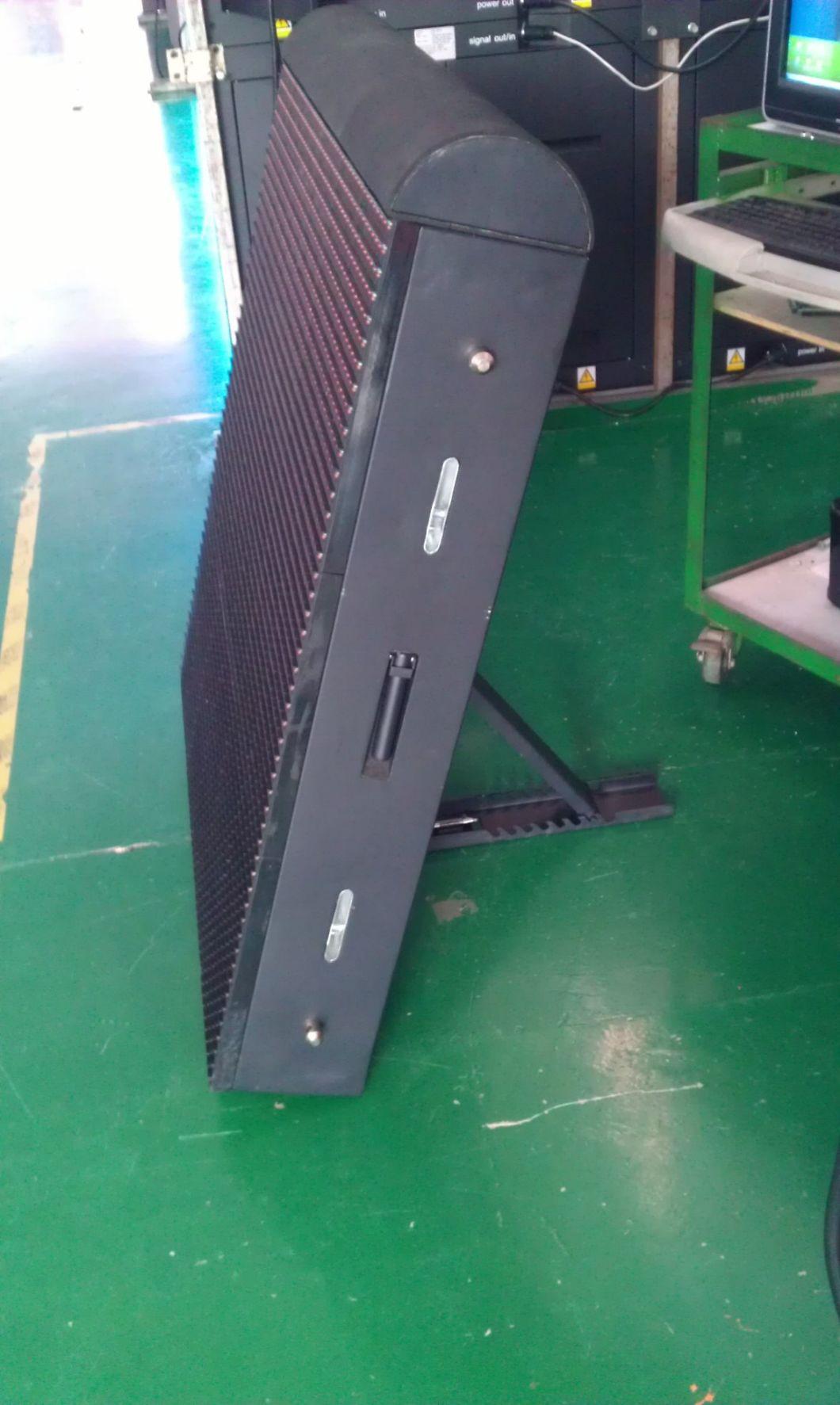

PRODUCT PHOTOS:





Package:



Certificates:
