Basic Info.

Model NO. P2.97 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, CCC, ETL Pixel Configuration SMD2121 Panel Dimension 500X500mm or 500X1000mm Panel Material Die-Casting Aluminum Processing 16bit Contrast Ratio 4000:1 Refresh Rate >1920Hz Expected Lifetime 100000 Hours Servicing Front/Rear Power Supply Meanwell OEM/ODM Yes Transport Package Flight Case or Plywood Case Specification 50x100cm Trademark Bako visIon Origin China HS Code 8528591090 Production Capacity 10, 000sqm/Month

Product Description

Slim P2.97 Indoor Rental Led Display 50x100cm for Concerts

P2.97 Indoor Rental Led Display Description

One Chassis, Various Module Options

TUV Certificated and Reddot Awarded (Private Model)

Cabinet 500mmx500mm or 500mmx1000mm

High Definition Indoor Display

Curvilinear, Concave, Convex

P2.97 Indoor Rental Led Display Feature

Ultra Slim and Lightweight                                                                      Simple and Easy Maintenance

Ultra slim edge 6mm, display thickness 35mm                                          Simply assembled

Net weight 28kg per set                                                                              Magnetic modules for front access

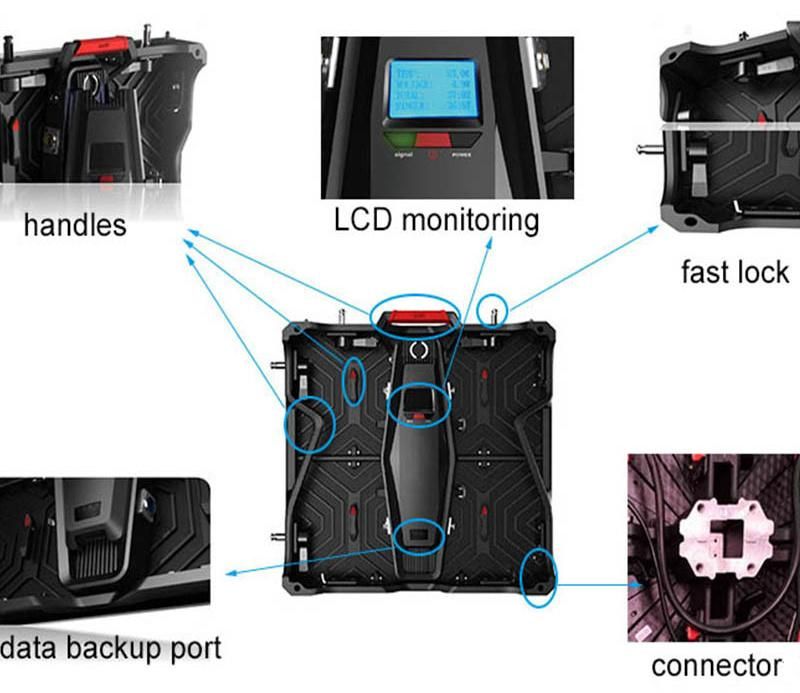

Superior Electrical Features                                               Slim, Lightweight, and Quiet
 The Dural signal backup port                                                500mmx500mm or 500mmx1000mm cabinet
 UI LCD monitoring display indicates the status                    80mm thickness, 7 KG per cabinet




Specifications:


Model	BIR-I-2	BIR-I-3	BIR-I-4	BIR-I-6
Physical Pitch	2.97mm	3.91mm	4.81mm	6.25mm
Pixel Configuration	SMD2121	SMD2121	SMD2121	SMD3528
Pixel Density	112896 pixels/m²	65536 pixels/m²	43264 pixels/m²	25600 pixels/m²
Module Dimensions (W× H) (mm)	250*250/250*500	250*250/250*500	250*250/250*500	250*250/250*500
Panel Dimensions (mm)	500*500*80 500*1000*80	500*500*80 500*1000*80	500*500*80 500*1000*80	500*500*80 500*1000*80
NO .of Modules Per Panel (W × H)	2x2	2x2	2x2	2x2
Physical Resolution of Module ( W× H)	84*84/64*168	64*64/64*128	52*52/52*104	40*40/40*80
Panel Material	168*168/128*336	128*128/128*256	104*104/104*208	80*80/80*160
Single Cabinet Weight	7/13KG/Panel	7/13KG/Panel	7/13KG/Panel	7/13KG/Panel
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Processing	16bit	16bit	16bit	16bit
Colour Number	281trillion	281trillion	281trillion	281trillion
Contrast Ratio	4000:1	4000:1	4000:1	4000:1
Average Power Consumption	60/120W/Panel	60/120W/Panel	60/120W/Panel	60/120W/Panel
Max Power Consumption	110/400W/Panel	110/400W/Panel	110/400W/Panel	110/400W/Panel
Operating Temperature	-10~60ºC/10~60ºC	-10~60ºC/10~60ºC	-10~60ºC/10~60ºC	-10~60ºC/10~60ºC
Storage  Temperature	-30~60ºC/10~60ºC	-30~60ºC/10~60ºC	-30~60ºC/10~60ºC	-30~60ºC/10~60ºC
Refresh Rate	>1920Hz	>1920Hz	>1920Hz	>1920Hz
Brightness	900-1200nits	900-1200nits	900-1200nits	900-1200nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing angle	140°	140°	140°	140°
Max Stacking	20/10	20/10	20/10	20/10
Max Hanging	20/10	20/10	20/10	20/10
Expected Lifetime	100,000hours	100,000hours	100,000hours	100,000hours
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
IP Rating (Front/Rear)	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21
Certification	CCC,CE,FCC,ETL	CCC,CE,FCC,ETL	CCC,CE,FCC,ETL	CCC,CE,FCC,ETL

Part of ExhibitIons during this year

About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a high-tech science & technology enterprise of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking the new model and tooling for customized solutions as well as creative products.



Our Service:
1. Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video, and phone.
2. Promising the quality of goods
All of the products will be tested many times and 100% promise the products is good before shipping.
3. Both OEM and ODM are available
The products can be customized according to your projects and offer you the CAD drawing for free.
4. After-sale service
We guarantee all of our displays, modules, spare parts for two years. During the time, we will replace or fix our goods for free if there is something wrong with them.
5. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
6. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
