Basic Info.

Model NO. P4.81 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, CCC, ETL Pixel Configuration SMD2121 Panel Dimension 500X500X80mm or 500X1000X80mm Panel Material Die-Casting Aluminum Weight 7/13 Kg/Panel Processing 16bit Contrast Ratio 4000:1 Refresh Rate >1920Hz Expected Lifetime 100000 Hours Servicing Front/Rear Power Supply Meanwell Warranty 2 Years OEM/ODM Yes Transport Package Flight Case or Plywood Case Specification 50x100cm Trademark BAKO VISION Origin China HS Code 8528591090 Production Capacity 10, 000sqm/Month

Product Description

50x100cm Panel P4.81 Rental Indoor Led Display with Nationstar Leds

P4.81 Rental Indoor Led Display Description
BIR-I Indoor Rental LED Display Panel

One Chassis, Various Module Options

TUV Certificated and Reddot Awarded (Private Model)

Cabinet 500mmx500mm or 500mmx1000mm

High Definition Indoor Display

Curvilinear, Concave, Convex

P4.81 Rental Indoor Led Display Feature

Ultra Slim and Lightweight                                                                      Simple and Easy Maintenance

Ultra slim edge 6mm, display thickness 35mm                                          Simply assembled

Net weight 28kg per set                                                                              Magnetic modules for front access



Superior Electrical Features                                               Slim, Lightweight, and Quiet
 The Dural signal backup port                                                500mmx500mm or 500mmx1000mm cabinet
 UI LCD monitoring display indicates the status                    80mm thickness, 7 KG per cabinet




P4.81 Rental Indoor Led Display Specifications:

	BIR-II-4
Physical Pitch(mm)	4.81
Pixel Configuration	SMD2121
Pixel Density	43.264 pixels/sqm
Module Dimensions (W × H) (mm)	250x250
Panel Dimensions (mm)	500x500x80/500x1000x80
No. of Modules Per Panel (W × H)	2x2/2x4
Physical Resolution of Module (W x H)	52x52
Physical Resolution of Panel (W x H)	104x104/104x208
Panel Material	Die-casting Aluminum
Single Cabinet Weight	8/14 kg / panel
Gray Scale	16 bit
Colours	281 trillion
Contrast Ratio	4,000:1
Average Power Consumption	310 W / sqm
Max Power    Consumption	750 W / sqm
Operating Temp/Humidity	-10°-60ºC/10%-60%
Storage Temp/Humidity	-30°-60ºC/10%-60%
Refresh Rate	>1,920 Hz
Brightness	≥1,200nits
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,000 Hrs

Cases

Part of ExhibitIons during this year

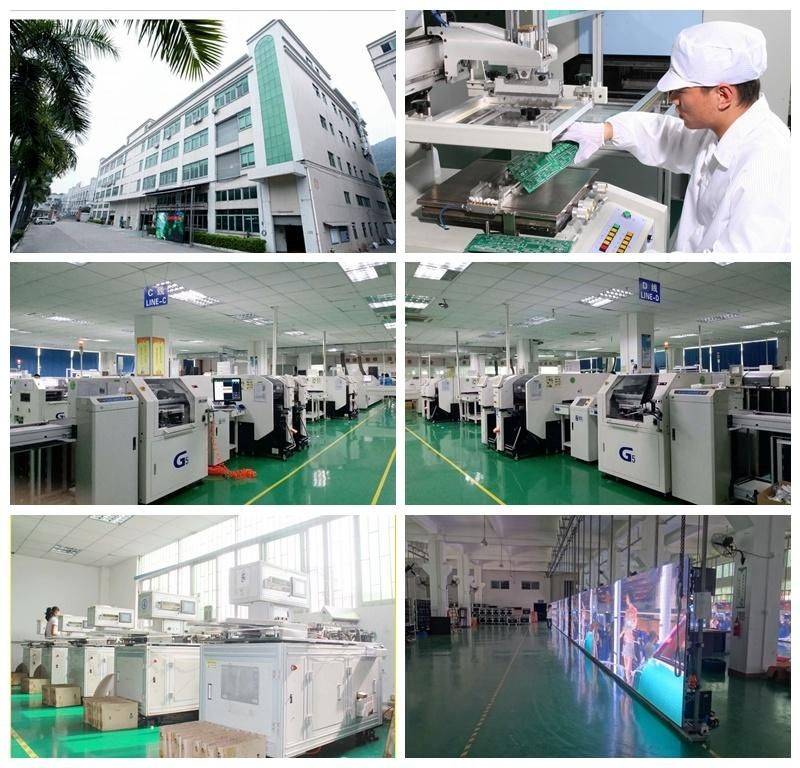

About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a high-tech science & technology enterprise of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open and been proficient in breaking the new model and tooling for customized solutions as well as creative products.



FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?
A: T/T, Western Union, L/C

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
