P10 Advertising Wall Full Color LED Display Screen
Shenzhen Foxgolden Technology LimitedBase Info
Description

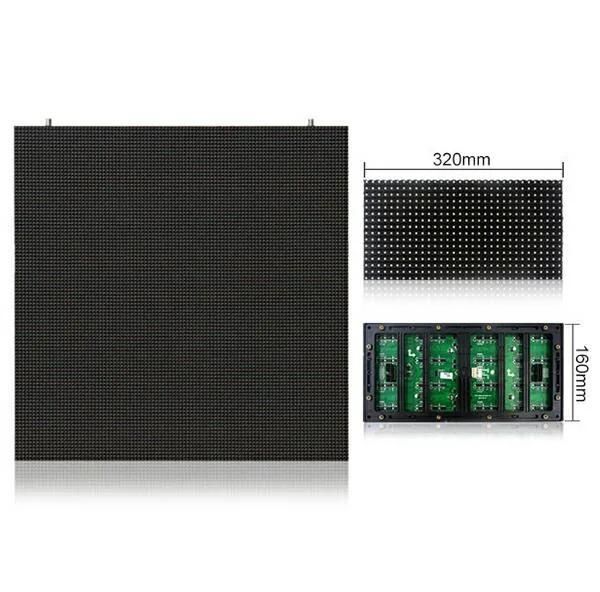

Technical parameterUnit module Module size 320*160mm Pixel pitch 10mm Pixel density 10000dots/m2 Pixel configuration 1R1G1B Led specification Φ 5ellipse Pixel resolution W: 32dots*H: 16dots Cabinet Dimension 960mm*960mm*150mm Quantities of module 18pcs Power supply 5pcs Thermal discharge Fan*2pcs Total weight 45kg Best viewing angle 10-300m Temperature Storage: -35degree~+85degree Working: -35degree~+85degree Thickness 15cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 800W Max. Power consumption ≤ 1100W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device Static scanning, also virtual Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 9, 000cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Network calbe: 100m, Multi-model: 500m, Single-model fiber: 20km Software LED media player
FAQ:
Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
2.LED have a big viewing angle, it can up to160 degree.
3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to creat value;Aging can improve the quality, ensure reliability.
Q:The advantage of LED SMD
A:1.High resolution ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency; 6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.
Foxgolden Group Ltd
Address: No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

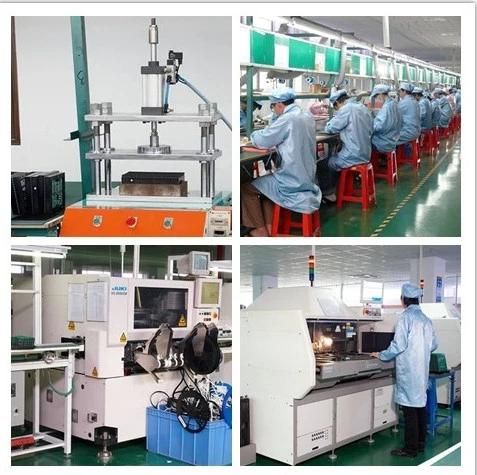

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
