Basic Info.

Model NO. FOX-outdoor-p10 Pixel Density 10000 dot / m² Scanning Mode 1/16 Scan Display Type LED Display Application Advertising Certification CE, RoHS, CCC Viewing Angle Vertical/Horizontal 90/120 Degree Module Size 320*160mm Warranty Time 3~5 Years Programmable Card Linsn/Xixun/Colorlight/Nova/Listen Good Colors 1r,1g,1b,1y Delivery Time 3-12 Working Days After Order Confirmed Support Input Signal HDTV CATV NTSC PAL S-Video VGA VCD DVD Interface Network/Erial Port/50 Chip/Parallel RS 232/Solar P Diode Model Silan/Nichia/CREE/Epistar/Opto Product Name P10 Single Color LED Display Transport Package Anti-Shaking Wooden;Air Flight Case;Carton Case Specification CE; ROHS; SGS. ETC. Trademark FOXGOLDEN Origin Shenzhen HS Code 8528591090 Production Capacity 4000sqm/Month

Product Description


Outdoor single Color P10mm LED message Screen Display for store

Specification:

Numbers	Technical indexes	Specification
1	Pixel Pitch	10mm
2	Density of Pixel	10000dots/M2
3	Pixel configuration	1R,1G,1B,1Y
4	Size of Single Board	160*320mm
5	Colors	16777216
6	Best Viewing Distance	≥10m
7	Horizontal Viewing Angle	140°
8	Maximum Power Consumption	600W/m2
9	Brightness	2500nits/m2
10	Gray Scale	14 bits per color
11	Color Temperature	6500k
12	Control Method	synchronization &Asynchronization
13	Driving method	constant scanning
14	Frame Frequency	60Hz
15	Refresh frequency	≥480Hz
16	Working Voltage	AC220V/110±10%
17	IP grade	IP65
18	Working temperature	10 degree centigrade  +80 degree centigrade
19	Computer operation system	Win 98/  Win XP/  Win 2000/winme/win7
20	Brightness adjustment	256 grade manual, 8 grade automatic
21	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC.ect
22	Software	LED play software
23	MTBF	More than 10000 hours
24	Life Span	100,000 hours

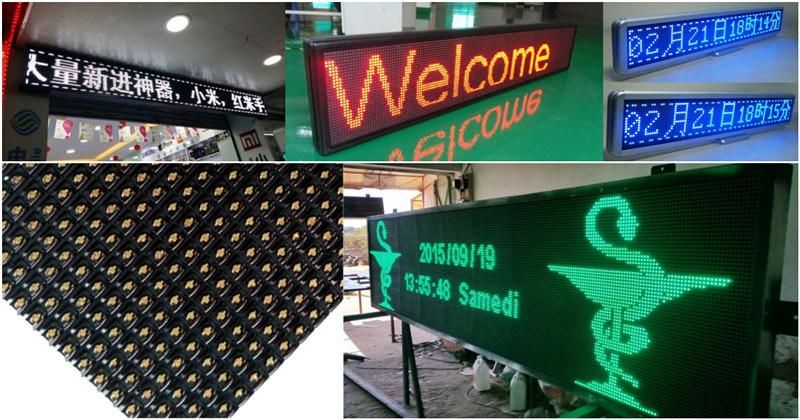

Products case show:



Company culture show:


Company overview
Foxgolden Group Ltd is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high  quality products, and have been well integrated with R & D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer ,FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness , but also makes breakthrough progresses on special usgaes. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and oveerseas market.
FOXGOLDEN provides a full series of LED display products involving various single and dual color , text & image display; indoor single & dual color , full color screen; outdoor single & dual color , full color display; dot matrix module display; traffic applied product;and series of indoor & outdoor module
With cultivation for high-quality production management team and project team , high quality products and local maintenance service; we only achieved 0.001% complaint in product quality for 7 constant years. that's why Foxgolden has received comprehensive attention form LED industrial experts these years!


                        Welcome to Foxgolden........


Product Pakage:
1.Anti-shaking wooden case
2.Flight case
3.Carton box

Certification:

FAQ:
If you want to buy led display,led modules,power supply,control card,etc:
Pls send me a inquiry,pls contact me,Your inquiry and your questions will be solved in 1hours.

Welcome to visit our website:foxgolden.en.made-in-china.com
