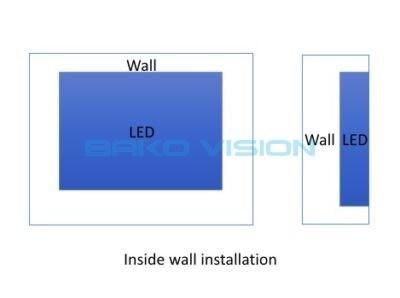

Inside wall LED Screens installation

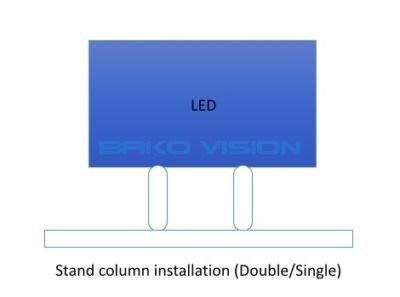

Standing column LED screens installation

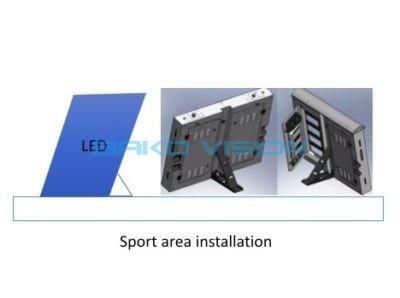

Sport area LED screens installation

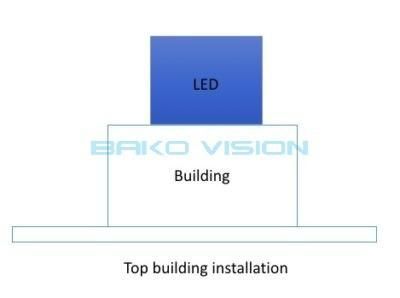

Top building LED screens installation

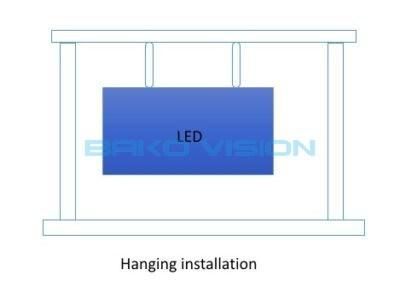

7. Hanging LED screens installation

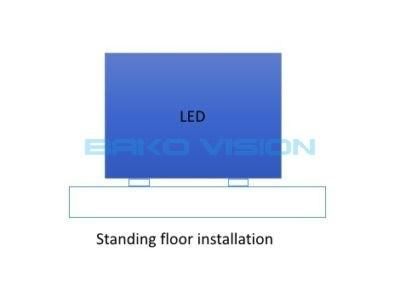

8. Standing floor LED screens installation

About Bako Vision

• Chinese Listed Company.
• 10+ Years Experience on LED Display Screen Manufacturing in China.
• Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
• Overseas Customer in 120+ Countries in The World.
• Full Capable to Provide the Tailor Work of OEM, ODM.

Q2. What is SMT? What is SMD ?
A2: SMT is a surface assembly technology ( SURFACE MOUNTED TECHNOLOGY ) and is currently the most popular technology and process in the electronics assembly industry; SMD is a surface mount device ( SURFACE MOUNTED DEVICE ).

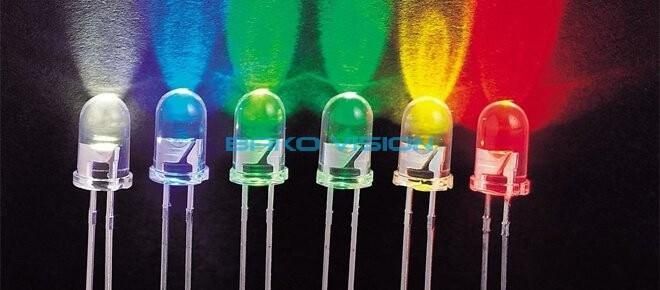

Q3. What is DIP LED module technology, what are the advantages and disadvantages?
A3: It means that the lamp of DIP package passes the lamp foot through the PCB board, and the tin is filled in the lamp hole by soldering. The module made by this process is the plug-in lamp group. The advantages are: high brightness, good heat dissipation, and the disadvantage is The pixel density is small.

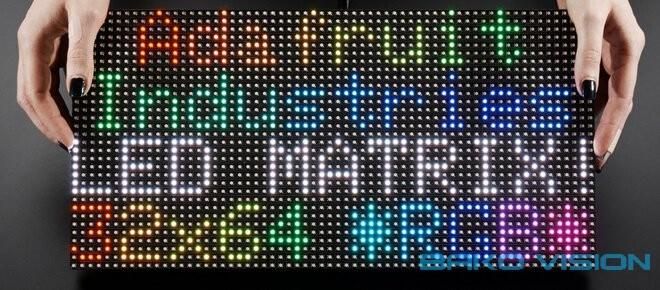

Q4. What is surface mount SMD technology module? What are the advantages and disadvantages?
A4: The surface mount is also called SMT. The SMT packaged lamp is soldered to the surface of the PCB board through the soldering process. The lamp pins do not need to pass through the PCB board. The module made by this process is called the surface mount module. The advantage is that the display effect is good. Large pixel density, suitable for indoor viewing: the disadvantage is that the brightness is not high enough, the lamp itself is not good enough.

Bako Vision, your best LED screen assistant in China !
