Basic Info.

Model NO. 10mm Pixel Density 10000 dot / m² Scanning Mode 1/2 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 32X16dots Cabinet Size 960X960X150mm Cabinet Resolution 96X96dots Screen Brightness 7500nits Protection Grade IP65 Compliance CE/CCC/RoHS,EMC,ETL,UL Transport Package Plywooden Case Specification 960x960mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

FEATURES:
 . 960×960mm standard cabinet for short delivery time.
. IP65 waterproof grade ,good for all weather conditions.

. High contrast ratio.

. High brightness of 7500 nits ensure good effect even face to sunshine.


Screen parameters:

NO.	Parameters	Specifications
1	Model	R10
2	Pixel Pitch(mm)	10
3	LED	SMD3535
4	Screen Resolution	10000dots/sqm
5	Scan Method	1/2
6	Module size(mm)	320x160
7	Cabinet size(L*H*W mm)	960x960x150
8	Cabinet(Kg)	36
9	Viewing angle	H:160°/  V:160°
10	Grey Scale	16bit
11	Refresh rate(HZ)	≥1920HZ
12	Brightness(nits)	≥7500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	260
15	MAX. power consumption(W/m2)	750
16	IP grade	F:IP65 / R:IP54
17	Working humidity	10~95%RH
18	Storage humidity	10~95%RH
19	Working temperature	-30ºC~60ºC
20	certificates	CCC,FCC,CE,ETL,RoHS

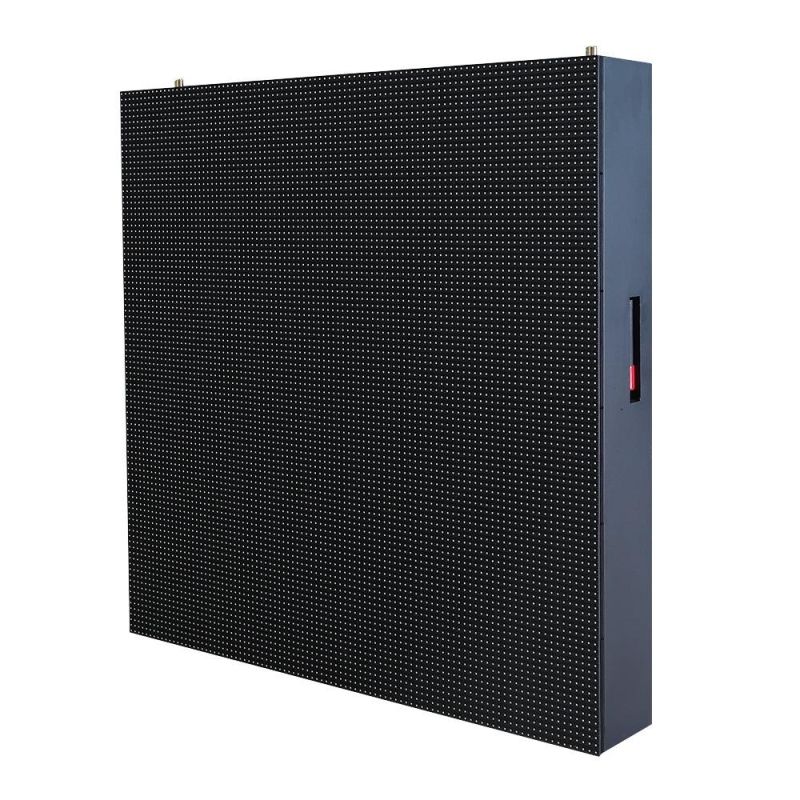

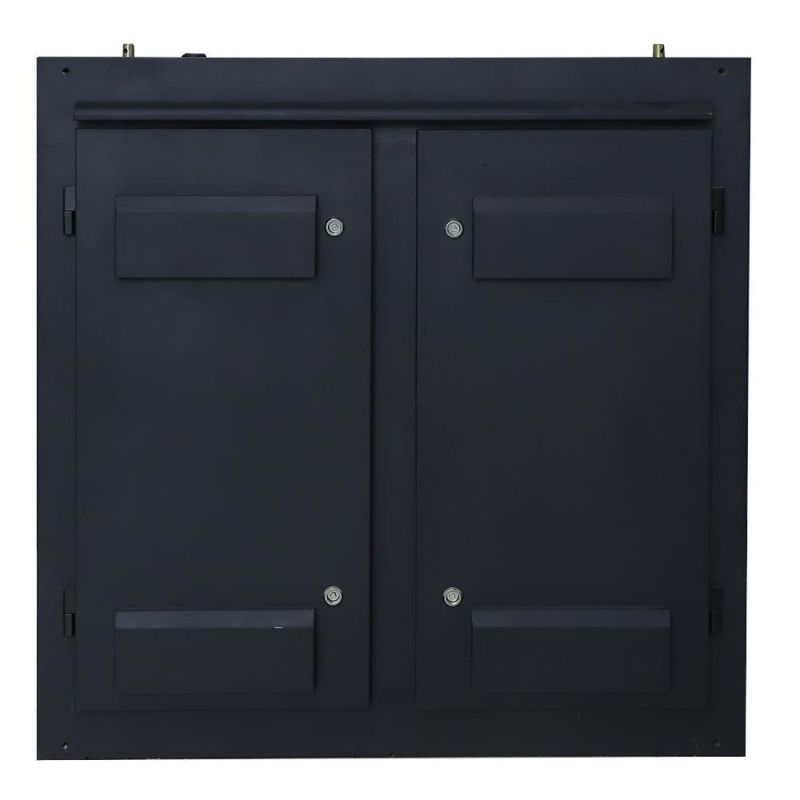

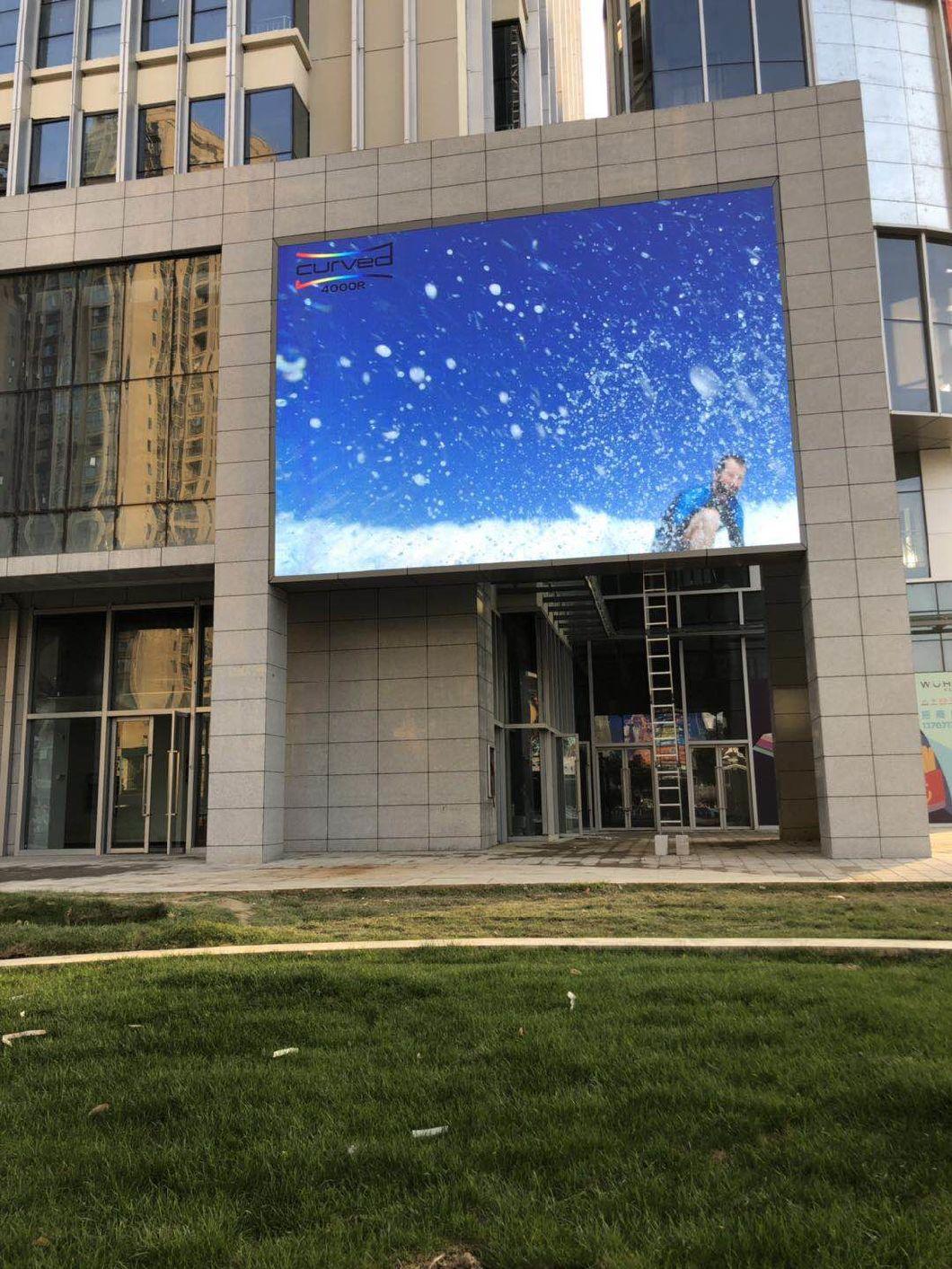

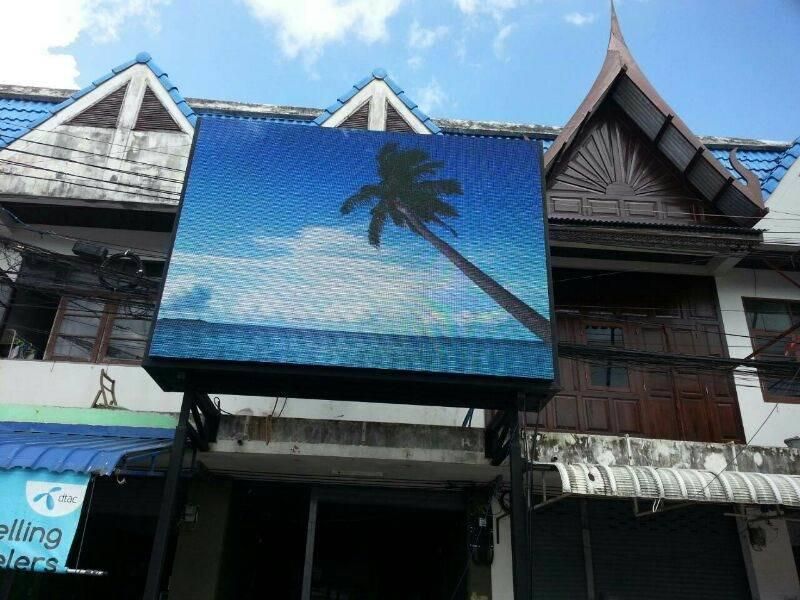

PRODUCT PHOTOS:

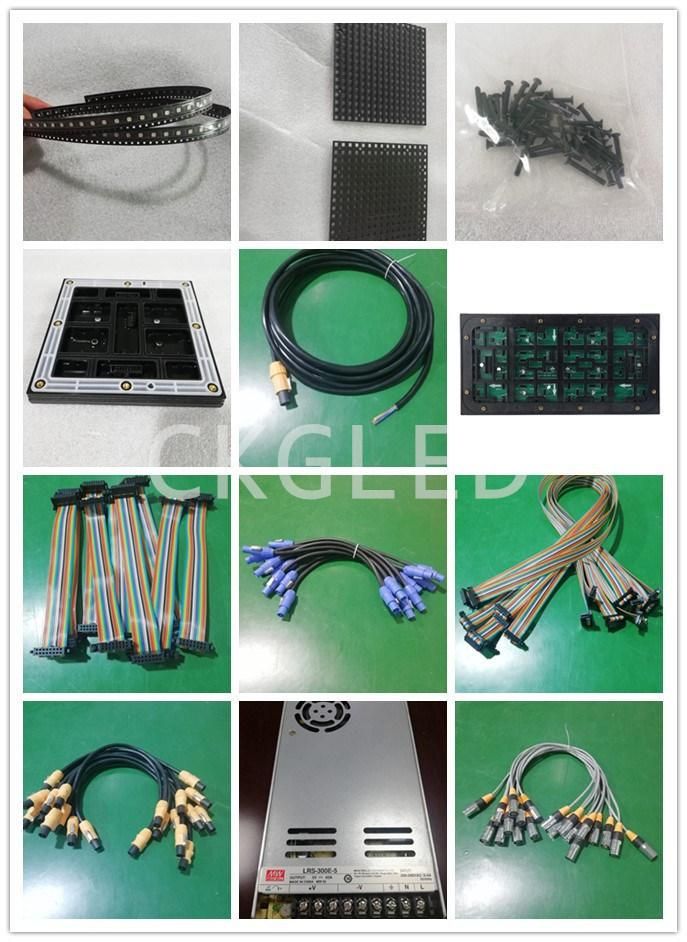

Assessory:

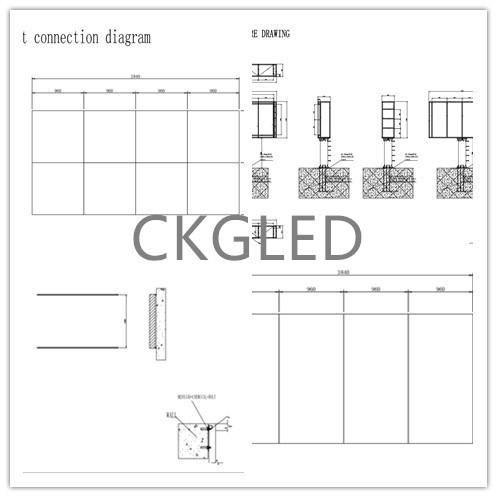

CAD DRAWINGS:

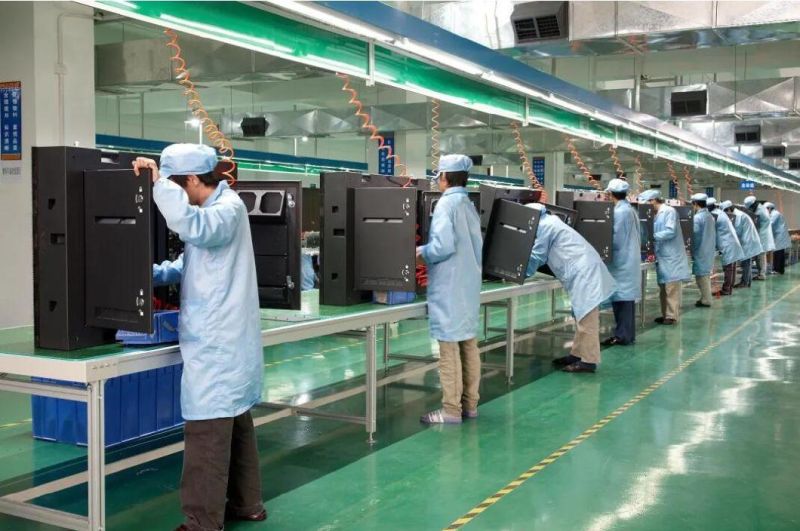

FACTORY TOUR:

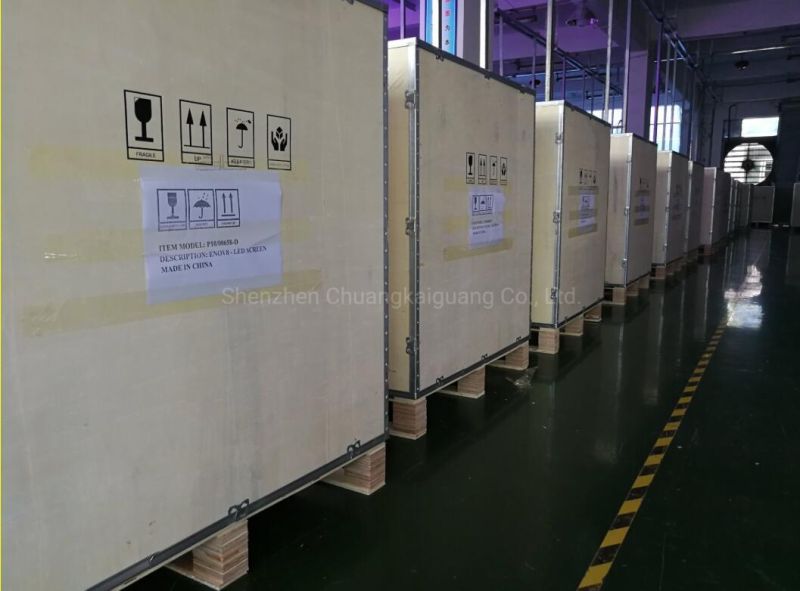

PACKAGE:




CERTIFICATIONS:
