Basic Info.

Model NO. BOC Series Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display Average Power Consumption 180W / m² Pixel Density 1600dots/M2 Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL Pixel Pitches 15-50mm Brightness 4000-8000CD/Sqm Viewing Distance 15-200m LED Module Size Strip 10*1500mm Power Supply Input AC220V, Output DC5V Product Name LED Curtain Display Structure LED Mesh Cabinet Unit LED Bar Module Viewing Angle 140(H)/140(V) Reflash Rate > 1920Hz Transport Package Plywood Case/Flight Case Specification 500*1500*83 Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 20, 000 M2/Month

Product Description

Transparent Slim DIP 346 Outdoor Curtain LED Display with P15 P25 LED Strip Sign Billboard Building Facade Video Wall

Transparent LED Screen Features

1.High transparency rate
80% transparency rate without affecting day-lighting. No need other heat dissipation system.
2. Fast installation
Fast lock systems ensure fast installation and saving time and labor cost.
3.Light weight
PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
4.Easy maintenance
Repairing single SMD without taking of single module of entire panel.
5. High brightness and energy saving
5-8000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.

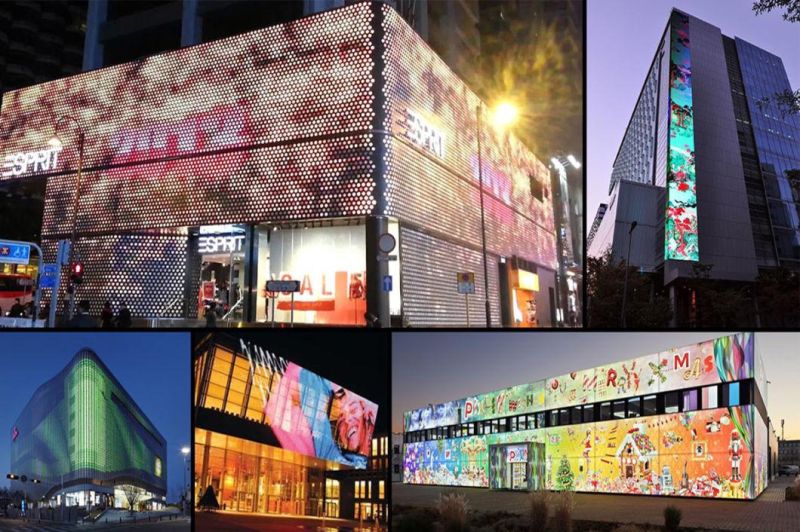

Curtain LED Display Cases




LED Video Wall Parameters

Pixel Pitch	25mm	31.2/25mm	41.6/25mm	50/25mm
DIP Size	DIP346	DIP346	DIP346	DIP346
Pixel Configuration	1G1R1B	1G1R1B	1G1R1B	1G1R1B
Module Size	10mm*1500mm	10mm*1500mm	10mm*1500mm	10mm*1500mm
Module Resolution	1*60	1*60	1*60	1*60
Module Power Consumption	18W	18W	18W	18W
Density	1600dots/m2	1280dots/m2	960dots/m2	800dots/m2
Panel Material	Aluminum	Aluminum	Aluminum	Aluminum
Module Size	500*1500*83	500*1500*83	500*1500*83	500*1500*83
Panel Weight	9KG	8.5KG	8KG	7.5KG
Hanging Installation	YES	YES	YES	YES
Best Viewing Distance	>25m	>25m	>25m	>25m
Panel Max Power Consumption	360W	340W	300W	200W

Why choose us ?
(1) More than 10 years experience in R&D & Manufacturing & Selling LED displays.
(2)  Reliable quality
(3)  Competitive price
(4)  Easy to use and maintenance
(5)  High gray level and refresh rate, vivid image and video.
(6)  2-5 years warranty

How to choose an LED display ?
The application of LED displays have these:
Outdoor commercial advertising billboard, Stage, Banks, Stock exchange centers, Bus station, Theme park, Airport, Schools, Government agencies, Exhibition, Meeting rooms, Cinemas, Hotels, Mobile media, and a variety of  public facilities and etc.
So, the first information that you need to tell us is that Where and How will you install your led display, if there are some pictures of your installation will be better.

How to buy an LED display ?
Before you buying a LED display, you should tell us these informations:

(1) What is the approximate size  of your LED display?
      Width * Height * Thickness, at least the W*H.

(2) How will be the working environment of your LED display?
     Indoor or Outdoor? Does it need waterproof function?

(3) For fixed or rental installation?
      If you have some pictures of the installation will be more appreciate.

(4) If it is a LED display with customized special shape,
      Please give us the drawing of the customized display with dimensions , DWG & JPG & PDF are ok.

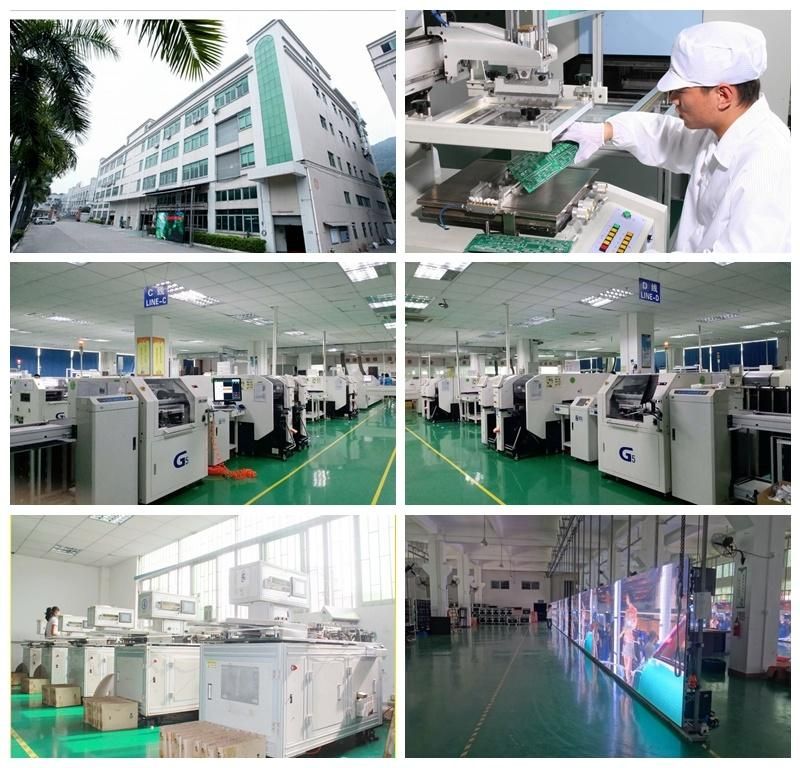

About Bako Vision

• Over 10 Years Experience on LED Display Screen Manufacturing in China.
• 3 Years High Quality Warranty Provided.
• Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
• Overseas Customer in 120+ Countries in The World.
• Full Capable to Provide the Tailor Work of OEM, ODM.
