Basic Info.

Model NO. P3.91 Pixel Density 65410dots/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 250*250mm Screen Brightness 5000bits Module Resolution 64*64dots Cabinet Resolution 128*128dots Refresh Rate 1920Hz Controller Nova Transport Package Flight Case Specification 500*500mm Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

R SERIES FEATURES:

.  IP65 design: good for any outdoor event environment.

.  Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

.  Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

. Seamless assembly: stainless steel locks achieve micro-adjustment to make seamless screens.

.  Cabinet anti-damage design : special protection design at the cabinet bottom to keep bottom line leds from broking.


PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	R 3.91-SMD1921 outdoor rental screen
2	Pixel Pitch(mm)	3.91
3	LED	SMD1921
4	Screen Resolution	65536dots/sqm
5	Scan Method	1/16
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x88
8	Cabinet(Kg)	7.8KG
9	Viewing angle	H:140°/  V:140°
10	Grey Scale	14bit
11	Refresh rate(HZ)	≥1920
12	Brightness(nits)	≥5000
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/sqm)	230
15	MAX. power consumption(W/sqm)	560
16	IP grade	F:IP65 / R:IP54
17	Controller	Novastar
18	Maintenance	Rear service
19	Working humidity	10~95%RH
20	Storage humidity	10~95%RH
21	Working temperature	-30ºC~60ºC
22	Storage temperature	-40ºC~70ºC

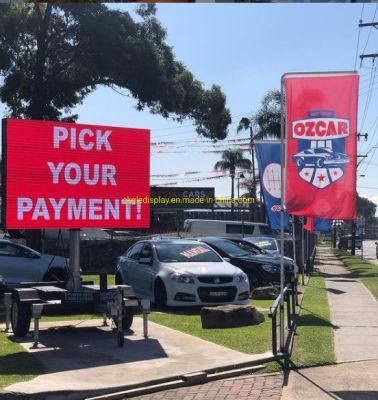

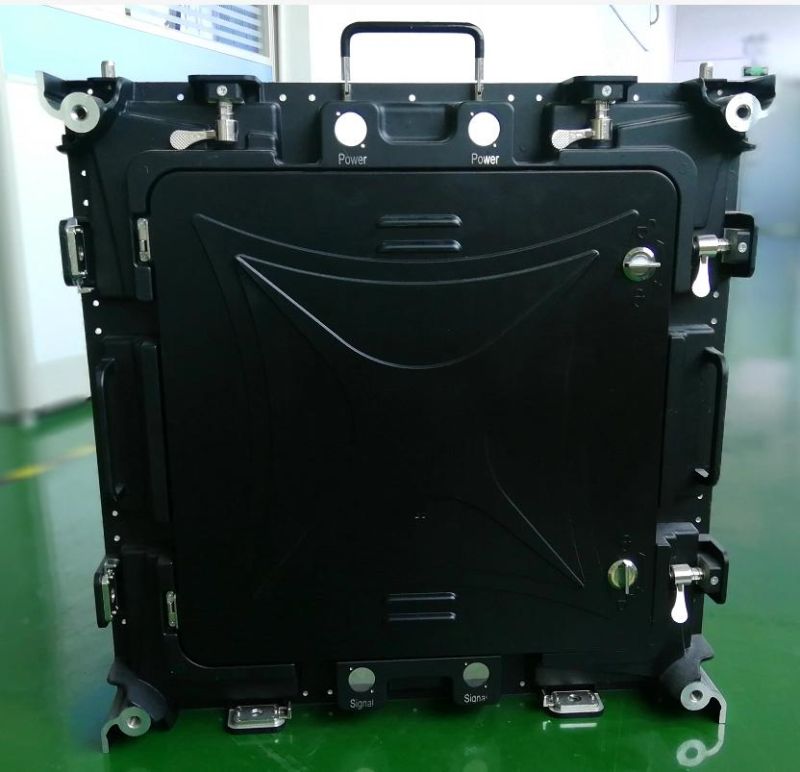

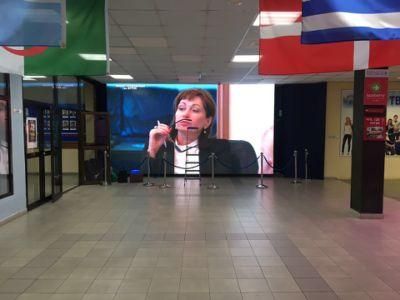

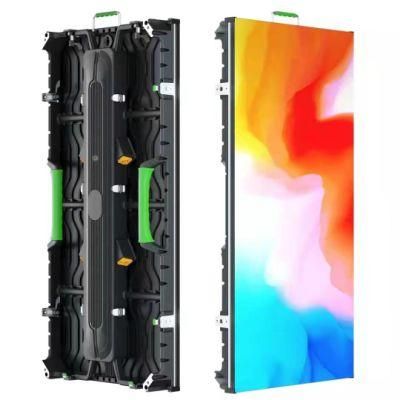

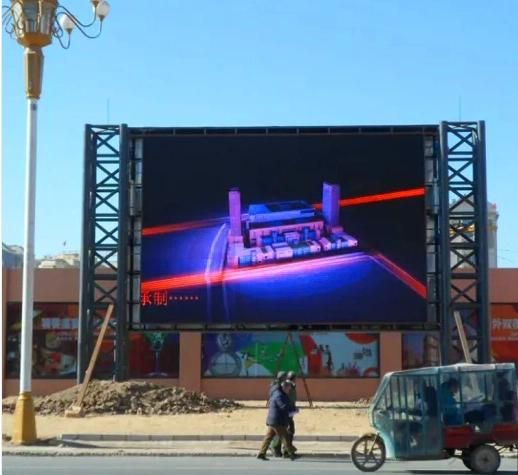

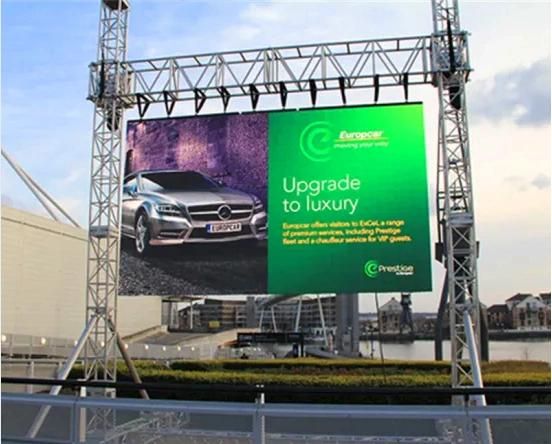

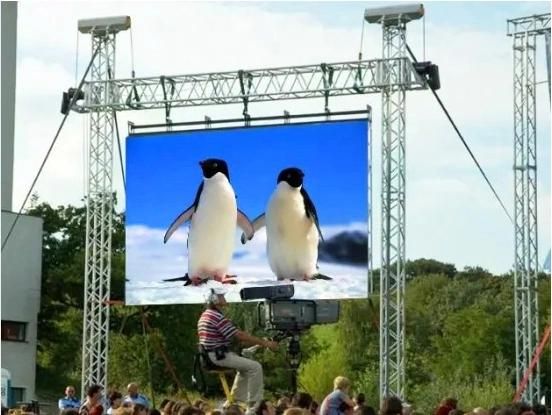

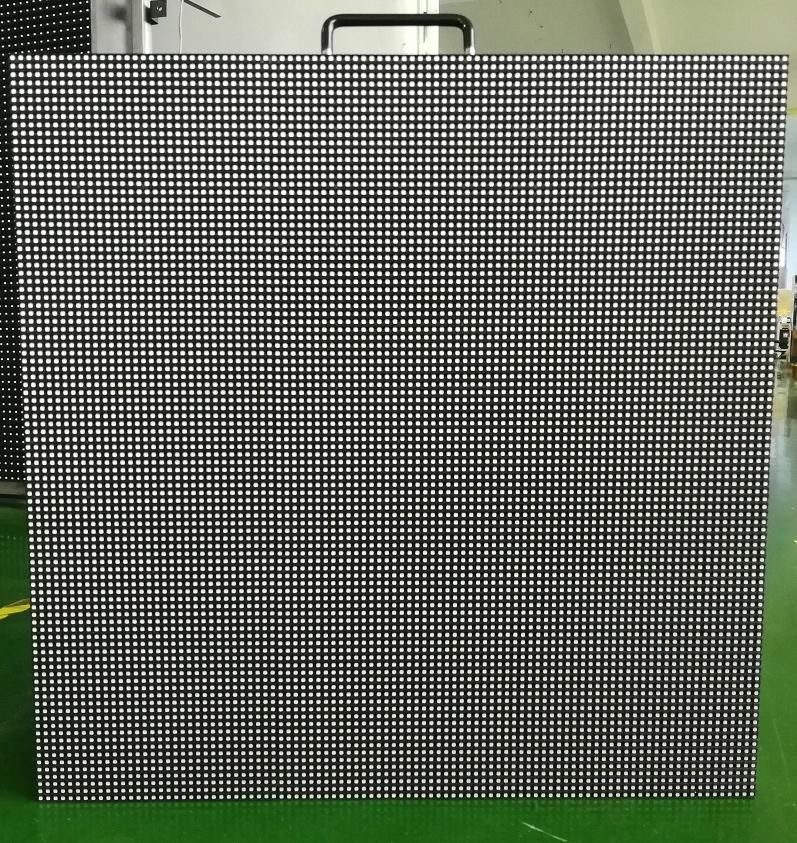

PRODUCT PHOTOS:

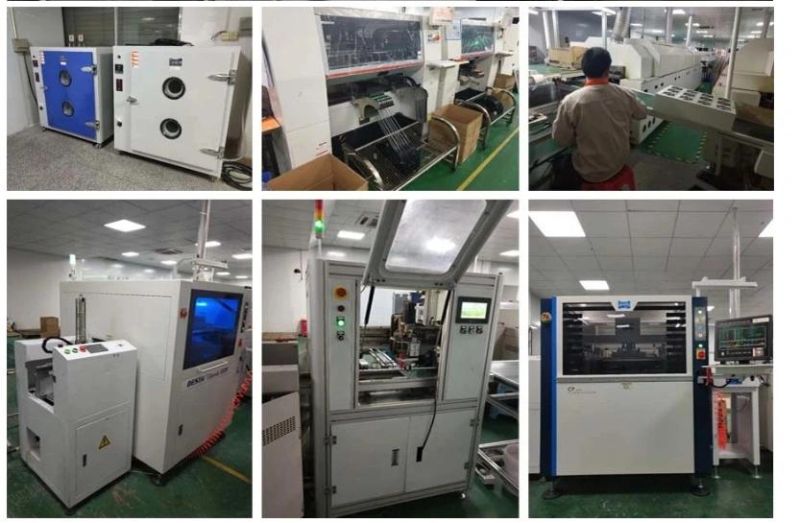

Facory room:




Certificates:




Our service

1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


After-service:

1. 2 years free maintenance
2. 7 days a week, 24 hours a day on-line service for any technical support for any customers.
3. Free training for customers in factory
4. Local Partner Installation Service
