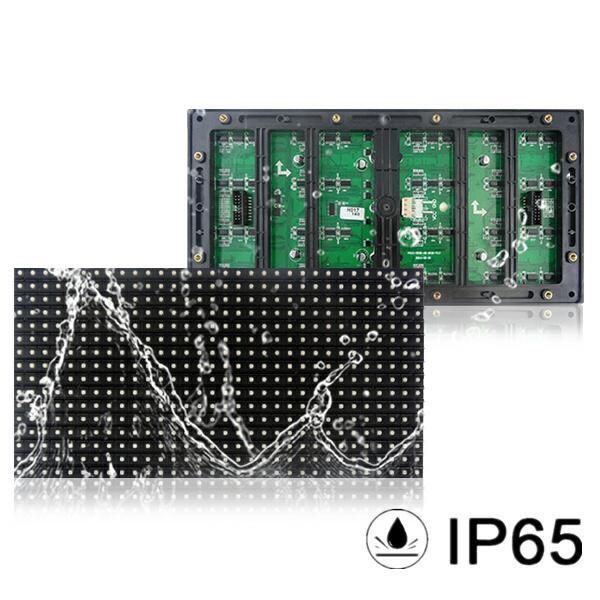

Technical parameterUnit moduleModule size320*160mmPixel pitch10mmPixel density10000dots/m2Pixel configuration1R1G1BLed specificationΦ 5ellipsePixel resolutionW: 32dots*H: 16dotsCabinetDimension960mm*960mm*150mmQuantities of module18pcsPower supply5pcsThermal dischargeFan*2pcsTotal weight55kgBest viewing angle10-300mTemperatureStorage: -35~+85Working: -35~+85Thickness15cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption800-950WMax. Power consumption≤ 1100W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving deviceStatic scanningDrive typeConstant Current driver ICRefresh frequency≥ 400HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 8000cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode960*960Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player






Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.

5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.



Foxgolden Group Ltd
Address:  No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
