ItemWaterproof LED Screen Outdoor P6 SMD LED Video WallPixel Configuration1R1G1BPhysics Distance Between Pixels6mmPhysics Pixel Density27,777 Pixel/m2Module Size (W x H)192mmx192mmPhysics Pixel / Module32x32=1024Cabinet Size (W x H)576mmx576mmPhysics Pixel / Cabinet96x96=9216Cabinet Weight12kgBrightness>6000cd/m2Viewing Distance>6mPower Consumption (W/m2)MAX 1300; Average 260Driver Mode1/4 scanLed Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC~+50ºCOperating Humidity10%-90%Storage Temperature-40ºC~+60ºCViewing AngleHorizontal:120°; Vertical: 120°Grey ScaleRed, green, blue each 16kDisplay Colors4096 BillionRefresh Rate300HZ-3000HZ adjustableIP RatingFront IP65 waterproof dust-proofDisplay CapabilityVideo, Graphic, Text, flash

After sales maintenance
 1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC  and 60ºC when you receive the goods from the customs

2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.


3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.

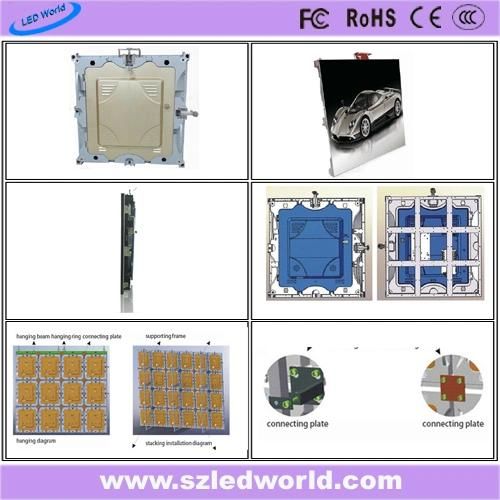

product detail:

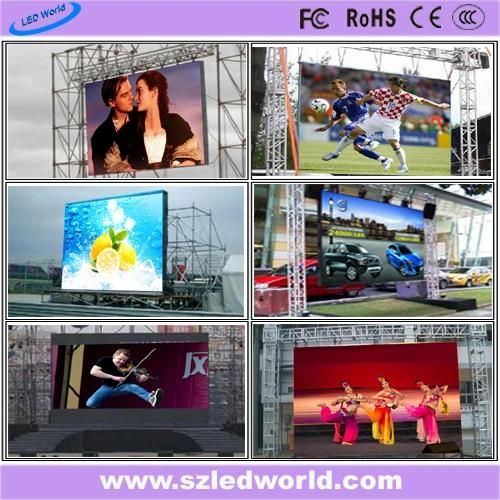

Project case:


Workshop and Packing::

Training:
We offer training for free.

Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.

We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
